Rock Exotica Kootenay Knot passing Pulley
Rock Exotica Kootenay Ultra Knot-passing pulley
The original Kootenay knot passing pulley was built by Rock Exotica in the late 80's. Since those days, many have copied the pulley and even used the original name, but none have made as many advancements in the design until now.
- Extremely compact and lightweight, while maintaining same capacity of larger Kootenay-style pulleys.

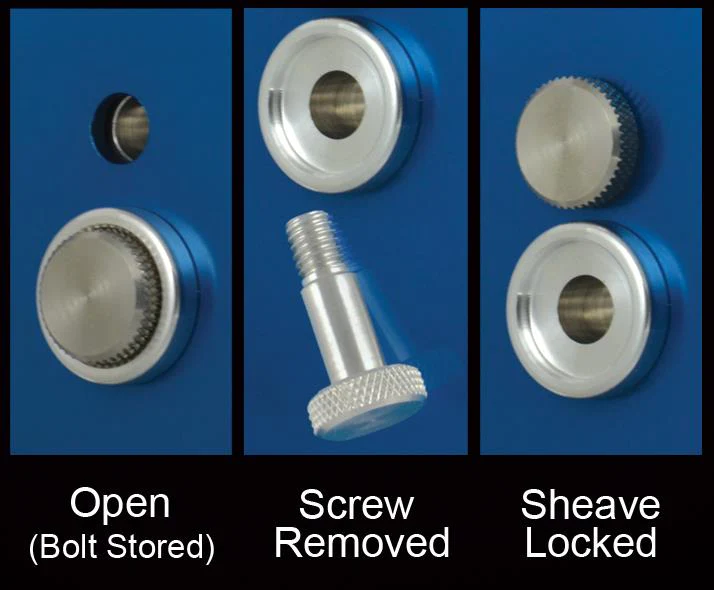

- Simplifies high-strength tie-off with a single locking screw, stowable within the axle.

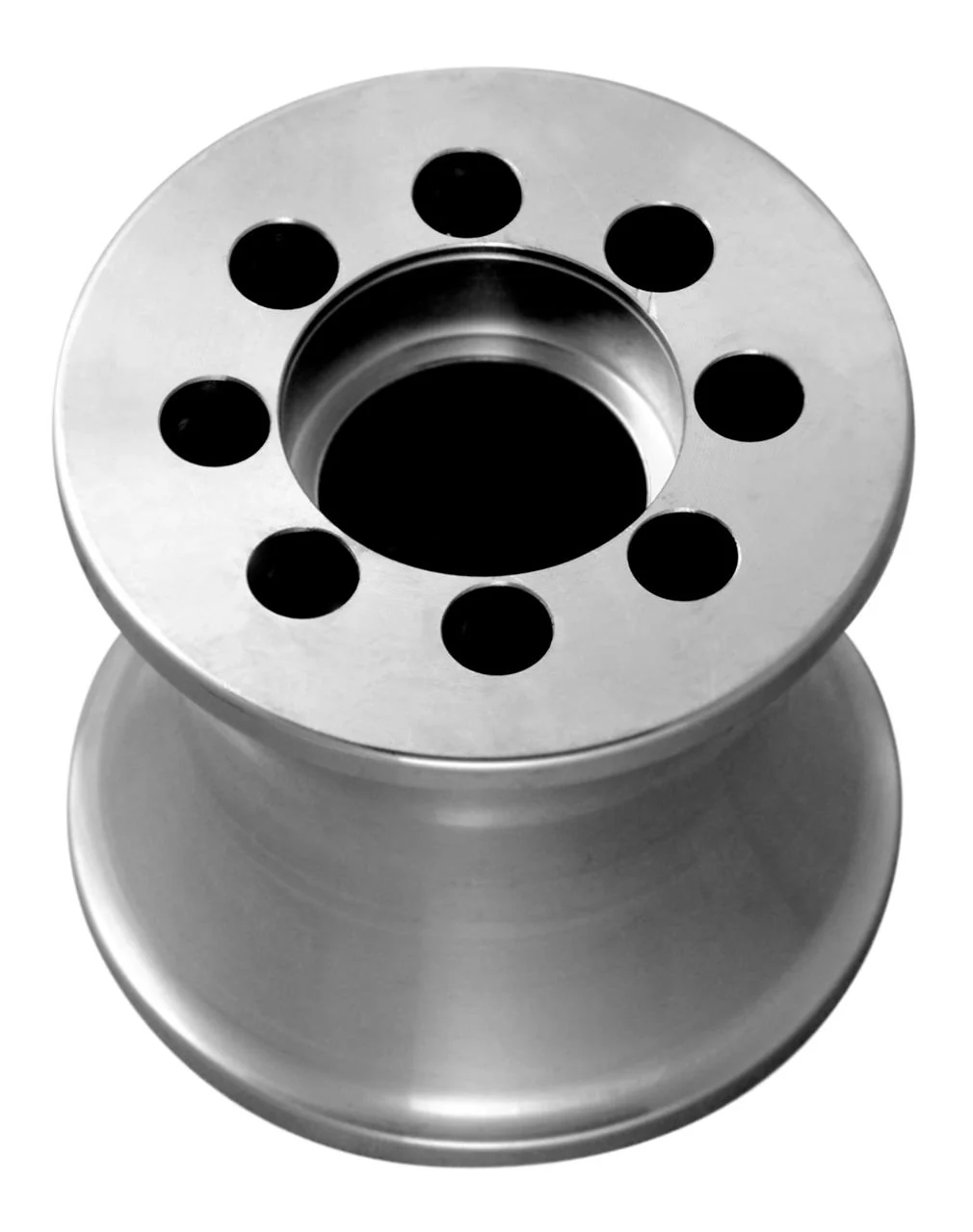

- Uses two independent sealed ball bearings for increased durability and efficiency.
- Two additional holes to separate tag lines and hoist lines, helping prevent spinning of the load and interference with connectors.
Part Number: P3
MBS: 39kN
Working Load Limit: 6kN Single Line
Weight: 711gm
Rope Diameter: 8mm - 19mm
Sheave Diameter: 56mm
Sheave Type: Bearing x 2
Width: 104mm
Height: 218mm
Depth: 75mm
Certification: Pending CE
See http://rockexotica.com/specsheets/P3-Kootenay.pdf for full specsheet
Description
Rock Exotica Kootenay Ultra Knot-passing pulley
The original Kootenay knot passing pulley was built by Rock Exotica in the late 80's. Since those days, many have copied the pulley and even used the original name, but none have made as many advancements in the design until now.
- Extremely compact and lightweight, while maintaining same capacity of larger Kootenay-style pulleys.
- Simplifies high-strength tie-off with a single locking screw, stowable within the axle.
- Uses two independent sealed ball bearings for increased durability and efficiency.
- Two additional holes to separate tag lines and hoist lines, helping prevent spinning of the load and interference with connectors.
Part Number: P3
MBS: 39kN
Working Load Limit: 6kN Single Line
Weight: 711gm
Rope Diameter: 8mm - 19mm
Sheave Diameter: 56mm
Sheave Type: Bearing x 2
Width: 104mm
Height: 218mm
Depth: 75mm
Certification: Pending CE
See http://rockexotica.com/specsheets/P3-Kootenay.pdf for full specsheet
