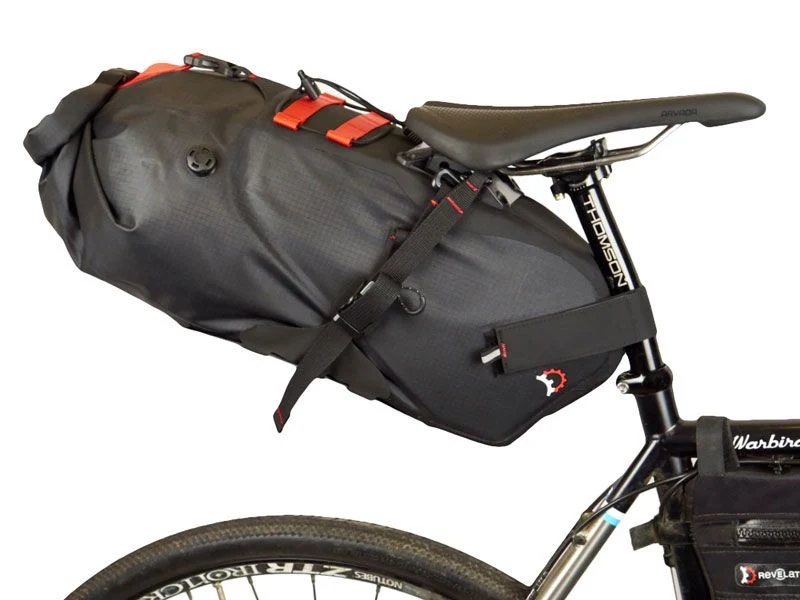

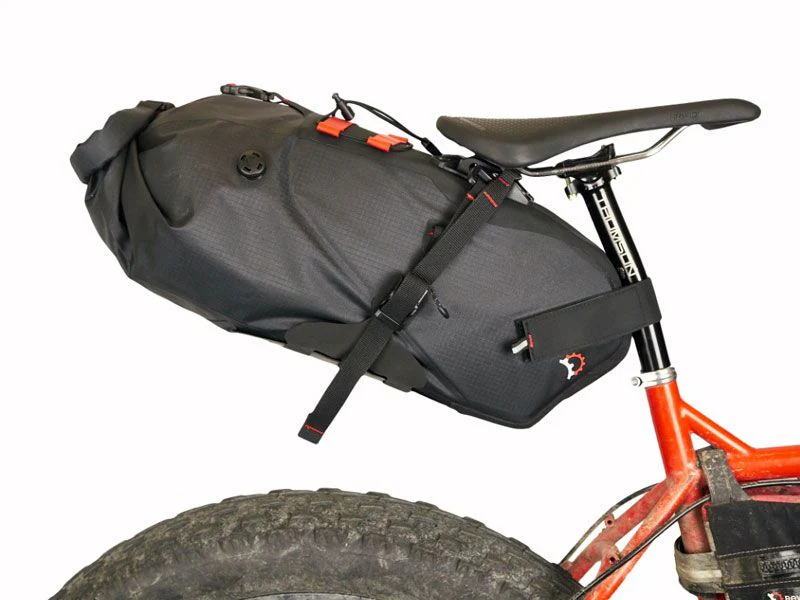

Revelate Designs Spinelock Waterproof Seat Bag, Black

The Spinelock integrates user tested and approved features like a one-way air purge valve, rear light slots, loop and bungee deck and an external plastic bottom with a new patented attachment system. Stability was the driving element in the design process. If you want something you can pack and forget, the Spinelock is your seat bag.

FEATURES:
Innovative Spinelock stability system completely eliminates side to side sway
Waterproof construction
Two mounting positions to accommodate seatpost setback and saddle adjustments

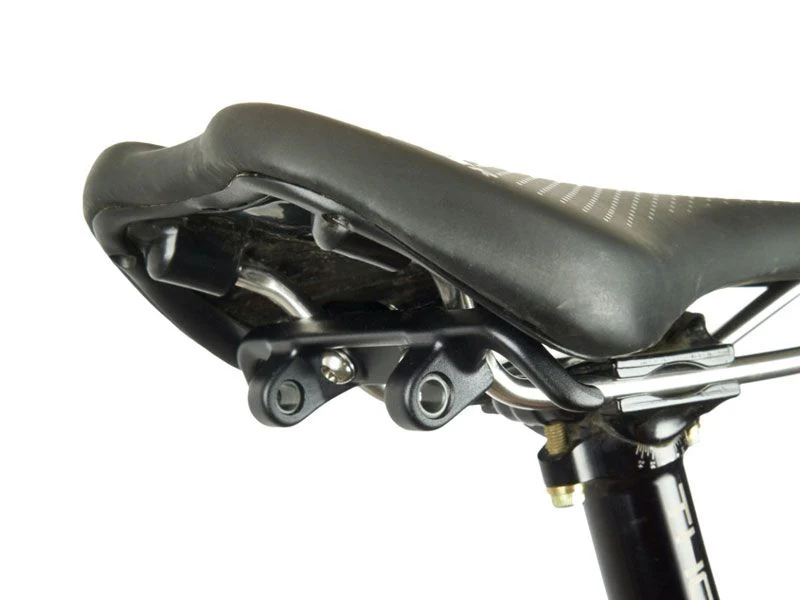

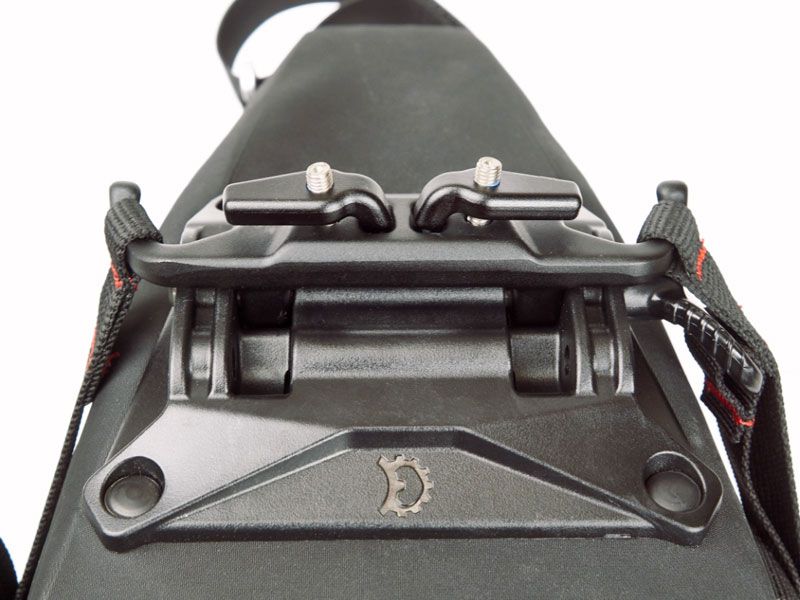

A low profile, high strength, forged aluminum clamp works in combination with precision IGUS bushings to form a quick-release pin interface making bag removal a cinch
Quick release bag from bike
Internal HDPE plastic structure

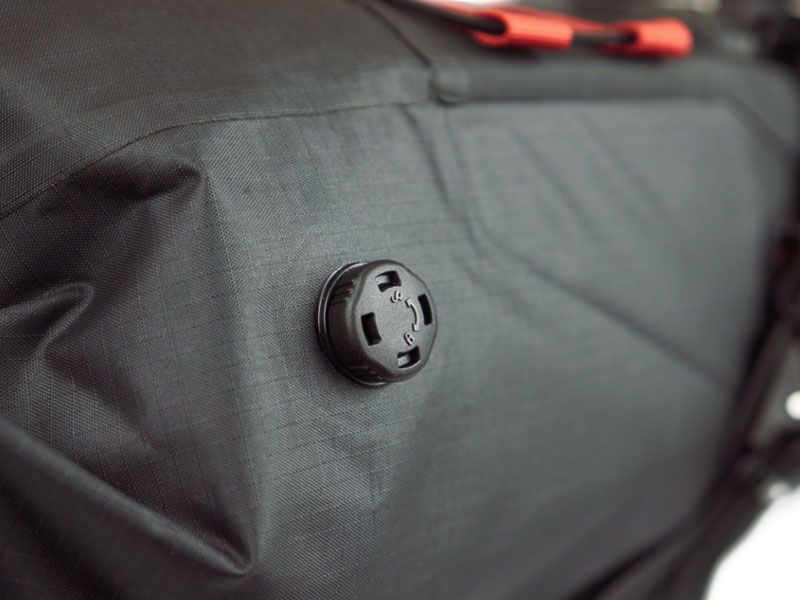

One way, low profile, air purge valve
Carbon seatpost friendly
Hypalon slots for a rear light
Top mounted external webbing and bungee for additional storage

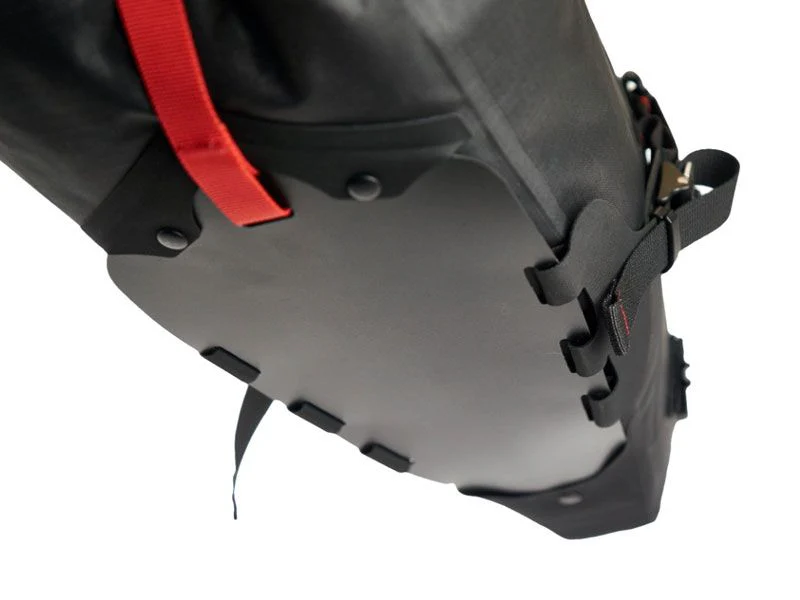

Protective external plastic bottom frame sheet
Active cam buckles prevent side straps from slipping on rough terrain

Sizing:
There are two size options, neither of which sacrifice features for capacity.
The smaller but largely versatile Spinelock 10 Ltr maximizes your carry with minimal tyre clearance and provides a generous amount of waterproof storage with additional space on the external corded deck. If you are going on a long expedition or carrying cold weather gear we recommend checking out the Spinelock 16 Ltr. The 10 Ltr Spinelock requires 20 cm tyre clearance and 16.5 cm exposed seat post

Important information on use and fit:

• The Spinelock bag is not compatible with carbon fiber saddle rails
• Only compatible with traditional style saddle rails and is not compatible with most models of Brooks saddles including (B17, B66, B67, Flyer, and similar), Spinelock is compatible with Brooks Cambium line (C15, C17, C19).
• This product is not designed for use with dropper seatposts
• This bag is for carrying soft, pliable objects. sufficiently pad any hard edge objects like cookware to prevent premature wear
• It is mandatory to check tyre clearance prior to use, especially with full suspension bikes. Bag contact with a tyre can cause a bad wreck and ruin your day. Tyre damage to the bag is not covered by warranty

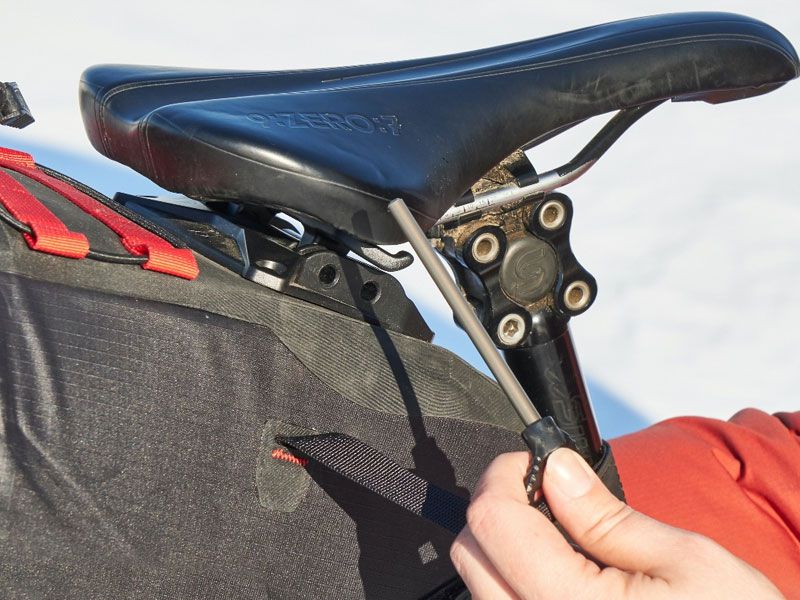

• A Torx-25 wrench is needed for installation. You likely already have one on your multi-tool!

SPECIFICATIONS:
Volume: 10 Ltr Weight: 638 g
Volume: 16 Ltr Weight: 680 g
Materials: 210 Denier Ripstop Nylon with dual coated TPU, urethane based Hypalon reinforcement fabric, UV-stabilized, impact resistant nylon resin, forged aluminum. Imported.
